Rich Solar 800 Watt Complete Solar Kit

Rich Solar 800 Watt Complete Solar Kit

$2,699.99 - $2,699.99
$2,699.99
$2,699.99 - $2,699.99
$2,699.99
Availability:
in stock, ready to be shipped

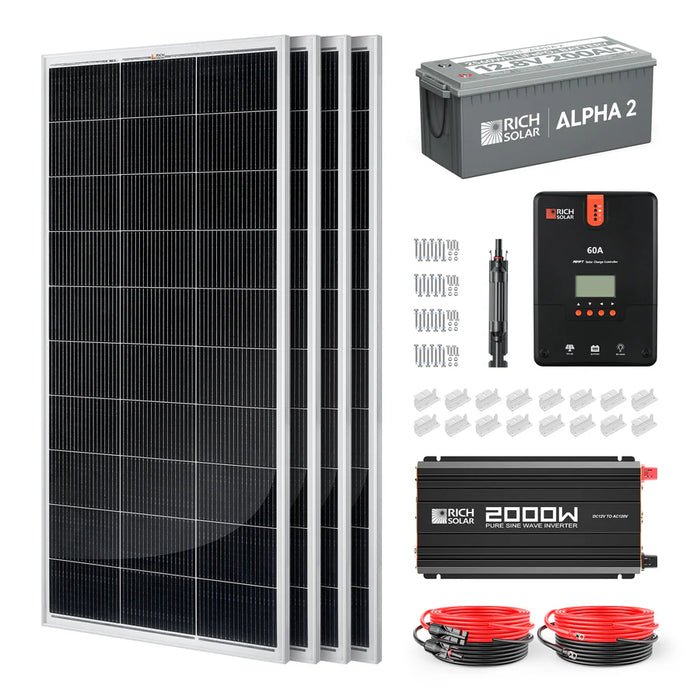

    Our 800W 12V Complete Solar Kit provides everything you need to start capturing, storing, and utilizing solar energy. The kit includes four high-efficiency 200W Monocrystalline panels, a 60A MPPT controller, a 2000W 12V inverter, and an Alpha 2 Lithium battery. Ideal for installation on your RV or tiny home, this kit equips you with a seamless solar adventure. Build your energy independence today!

    Kit Includes:

    • 4 x MEGA 200W 12V Panel (RS-M200)
    • 1 x ALPHA 2 Lithium Battery (RS-B122S)
    • 1 x NOVA 2000W 12V Inverter (RS-V2P12)
    • 1 x 60A MPPT Charge Controller (RS-MPPT60)
    • 4 x Z Bracket Set (RS-ZB4C)
    • 1 x 15A Solar Panel Inline Fuse Holder (RS-SC15F)
    • 1 x 2/0 Gauge 3FT Cable Set (Inverter to Battery) (RS-2/0A3F3)
    • 1 x 30' 10AWG Solar Cable Set (Panel to Controller) (RS-30101)
    • 1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)

    • MEGA 200 Watt Solar Panel

      The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

      • No. of Panels: 4 x MEGA 200 Watt Solar Panels
      • Wattage Per Panel: 200W
      • Total Wattage of Panels: 800W

      Features:

      • Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
      • Excellent low-light performance even on early mornings, evenings, and cloudy days.
      • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
      • Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
      • 25-year limited warranty for power output; 10-year workmanship warranty.

      Installation:

      • Easy installation and handling for various applications (high-end off-grid and mobile applications)
      • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
      • Compatible with on-grid and off-grid inverters

      Warranty:

      • Maximum Power(Pmax): 200W
      • Maximum Power Voltage(Vmp): 18.4V
      • Maximum Power Current(Imp): 10.9A
      • Open Circuit Voltage(Voc): 21.8V
      • Short Circuit Current(Isc): 11.6A
      • Temperature Range: -40 ~ +185°F
      • Maximum Series Fuse Rating: 15A
      • Weight: 24 lb
      • Dimensions: 58.7 x 26.8 x 1.2 in

    • Alpha 2 12V 200Ah LiFePO4 Battery

      Features:

      • Stay powered in low temps with advanced internal heating tech
      • Track battery health in real time from your phone
      • Over 5,000 cycles with UL94 V-0 flame-retardant protection
      • IP65 waterproof, dustproof, and tested for extreme safety
      • Free of toxic metals—safe for you and the planet
      • Lightweight design, heavy-duty performance
      • ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

      Warranty:

      • *5-Year Warranty

      Specifications:

      Battery

      • Cell Type: Lifepo4 Battery
      • Nominal Voltage: 12.8V
      • Nominal Capacity: 200Ah
      • Nominal Energy: 2560Wh
      • Cycle Life: 5000 Cycles

      BMS

      • BMS: 100A
      • Maximum Charging Current: 100A
      • Maximum Continuous Discharge Current: 100A
      • Maximum Discharge Current 10 Seconds: 110A

      Charge

      • Charge Method: CC/CV
      • Charge Voltage: 14.4V ± 0.2V
      • Recommend Charge Current: 50A (0.2C)

      Temperature

      • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
      • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
      • Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

      Self-heating

      • External Power Draw: 100W
      • Internal Heating Starts: < 41℉ (5℃)
      • Internal Heating Stops: > 50℉ (10℃)

      Others

      • Net Battery Weight: 48.5lb
      • Size(LxWxH): 20.9x8.1x8.5in (Group 31 Size)
      • Housing Material: ABS (Flame Retardant Plastic)
      • Protection Class: IP65

    • NOVA PURE 2000W (2kW) 12V Industrial Pure Sine Wave Inverter

      Features:

      • Optimized for 12V DC system voltage, great addition to any off-grid solar power system.
      •  Offers high-quality waveform with little harmonic distortion.
      •  Overload protection for both DC input and AC output to prevent damage to the components and the unit.
      •  Special LED indicators for under-voltage and over-voltage protection, over-temperature protection, over-load protection, and short circuit indication.
      •  High-speed ventilation fans to help keep the inverter running at a low temperature.
      •  120V AC outlets allow for the operation of more than one appliance simultaneously.
      • Quiet, no static or humming noises.

      Warranty:

      • 2-Year Warranty

      Specifications:

      • Model: RS-V2P12
      • Rated Voltage: 12V DC
      • Continuous Power: 2000W
      • Peak Surge: 4000W
      • Waveform: Pure Sine Wave
      • Input Voltage: 12V DC
      • Output Voltage: 120V AC
      • Output Frequency: 60 Hz
      • Output Efficiency: ＞88%
      • AC Output Sockets: 3
      • USB Power Port: 5V / 2.1A
      • Power Output Control: AC On/Off Switch
      • Operating Temperature: 14°F to 122°F
      • Dimensions: 16.1 x 9.6 x 4.0 (in) / 410 x 244 x 102 (mm)
      • Weight: 10.1 (lb) / 4.6 (kg)

    • 60 Amp MPPT Solar Charge Controller

      Features:

      • Automatically detects 12V/24V/36V/48V DC system voltages.
      • Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
      • Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
      • Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
      • LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
      • Features diverse load control; also capable of charging over-discharged lithium batteries.
      • Die-cast aluminum design allows for efficient heat dissipation.
      • RS232 port for communicating with BT-1 Bluetooth module.

      Warranty:

      • 2-Year Warranty

      Specifications:

      • Rated Battery Current: 60A
      • Rated Load Current: 20A
      • Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
      • Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
      • Charge Circuit Voltage Drop: ≤0.26V
      • Discharge Circuit Voltage Drop: ≤0.15V
      • Operating Temperature: -31°F to 113°F
      • Max Terminal Size: <11mm
      • Overall Dimensions: 11.2 x 8.1 x 3.7 in
      • Net Weight: 7.94 lb
