Rich Solar Complete Off-Grid Solar Kit | 32 x MEGA 400 Solar Panels | 13,000W 120/240V Output | 48VDC

Rich Solar Complete Off-Grid Solar Kit | 32 x MEGA 400 Solar Panels | 13,000W 120/240V Output | 48VDC

$21,299.99 - $21,299.99
$21,299.99
$21,299.99 - $21,299.99
$21,299.99
Availability:
in stock, ready to be shipped

Everything you need to go completely Off-Grid! Best value on the market! Ships from California! Call us for any questions! Free technical support!

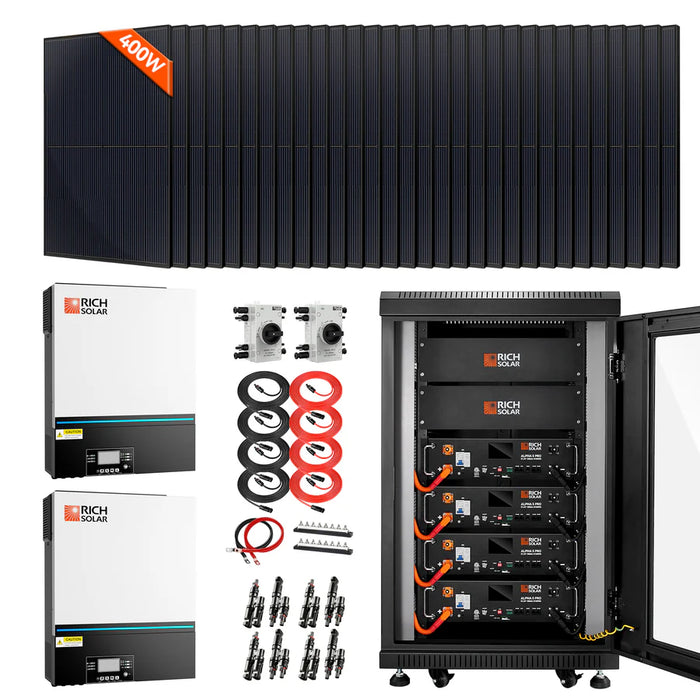

Kit Includes:

  • 32 x MEGA 400 Watt Monocrystalline Solar Panel (RS-M400)
  • 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
  • 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
  • 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
  • 2 x Busbar 600 AMP
  • 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
  • 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
  • 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
  • 1 x Free Battery Rack

  • MEGA 400 Watt Solar Panels

    The MEGA 400 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 400W with 24V, the MEGA 400 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.

    • No. of Panels: 32 x MEGA 400 Watt Solar Panels
    • Wattage Per Panel: 400W
    • Total Wattage of Panels: 12.8KW

    Features:

    • 10-busbar solar cell configuration
    • Mono PERC Technology
    • Lightweight anodized aluminum frame
    • High-transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug-and-play junction box
    • Industry-standard quick-connect cables work in series or parallel
    • Certified to withstand challenging environmental conditions
    • Excellent low-light performance on cloudy days, mornings, and evenings

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Material: Tempered Glass, Aluminum, Monocrystalline Silicon
    • Dimensions: 67.9 x 44.6 x 1.2 in
    • Weight: 49.4 lbs
    • Maximum Power (Pmax): 400W
    • Maximum Power Voltage (Vmp): 30.9V
    • Maximum Power Current (Imp): 12.9A
    • Open Circuit Voltage (Voc): 37.1V
    • Short Circuit Current (Isc): 13.7A
    • Maximum System Voltage (Vmax): 1500VDC
    • Temperature Range: -40 ~ +185°F

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Battery

    • No. of Batteries: 4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

    Features:

    • Certification: UL1973, UL9540A, FCC
    • 7,000 Deep Cycles Life
    • 5120 Watt Hours Energy
    • 100A Continuous Charge Current
    • Compatible with multiple brands of inverters
    • Low maintenance
    • Over charging or discharging protection
    • Overcurrent & short circuit protection
    • Parallel up to 15 Batteries
    • Connect in Parallel for Larger Capacity
    • With Sophisticated Battery Management System (BMS)
    • 10 Years Lifespan

    Warranty:

    • *10-Year Warranty

    Specifications:

    Electrical Specifications

    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Minimum Capacity: 99.5Ah
    • Nominal Capacity: 5120Wh

    Operating Specifications

    • Charging Voltage: 56V
    • Discharging Cutoff Voltage: 44.8V
    • Maximum Charging Current: 100A
    • Continuous Charge Current: 100A
    • Maximum Discharge Current: 100A

    Physical Specifications

    • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
    • Battery Weight: 99.2 lb
    • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
    • Server Rack Weight: 196.2 lb

    BMS Operation

    • Operation Voltage: 43.2~58.4V
    • Maximum Charging Current: 100A
    • Maximum Discharging Current: 100A
    • Maximum Charge Voltage (CC/CV): 57.6V
    • Overcharge Protection Voltage (Battery): 58.4V
    • Overcharge Protection Release Voltage (Battery): 54V
    • Over Discharge Protection Voltage (Battery): 43.2V
    • Over Discharge Protection Release Voltage (Battery): 47.2V
    • Over Discharge Primary Charge Overcurrent Protection Value: 110A
    • First Stage Charge Over Current Delay: 1s
    • Primary Discharge Overcurrent Protection Value: 110A
    • Primary Discharge Overcurrent Protection Delay: 1s
    • Secondary Discharge Overcurrent Protection Value: 150A
    • Secondary Discharge Overcurrent Protection Delay: 500ms

    Temperature Performance

    • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
    • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
    • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
    • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

    Others

    • Certification: UL1973, UL9540A, FCC
    • Max. Expansion: 15 pcs in parallel
    • Communication Ports: RS485/RS232/CAN
    • Warranty: 10 Years Manufacturer Defect

  • NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverter

    • No. of Hybrid Solar Inverters: 2 x NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverters

    Features:

    • Pure Sine Wave Inverter
    • Configurable color with the built-in RGB LED bar
    • Built-in Wi-Fi for mobile monitoring (APP is required)
    • Supports USB On-the-Go function
    • Built-in anti-dusk kit
    • Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
    • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
    • Configurable AC/PV output usage timer and prioritization
    • Configurable AC/Solar charger priority via LCD control panel
    • Configurable battery charging current based on applications via LCD control panel
    • Compatible with utility mains or generator power
    • Auto restart while AC is recovering
    • Overload/over temperature/short circuit protection
    • Parallel operation with 6 units
    • Smart battery charger design for optimized battery performance
    • Cold start function

    Warranty:

    • 3-Year Warranty

    Specifications:

    Model: RS-H6548
    Rated Inverter Power: 6500VA/6500W
    PARALLEL CAPABILITY: Yes, 6 units

    INPUT

    • Voltage: 120 VAC
    • Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
    • Frequency Range: 50 Hz/60 Hz (Auto Sensing)


    OUTPUT

    • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
    • Surge Power: 2* rated power for 5 seconds
    • Efficiency (Peak): 91%
    • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
    • Waveform: Pure Sine Wave
    • Optional DC Voltage: 12 VDC ± 7%, 100W


    BATTERY

    • Battery Voltage: 48 VDC
    • Float Charging Voltage: 54 VDC
    • Overcharge Protection: 66 VDC


    SOLAR CHARGER & AC CHARGER

    • Solar Charger Type: MPPT
    • Maximum PV Array Power: 8000W (4000W x 2)
    • MPPT Operating Voltage Range: 90 ~ 450 VDC
    • Maximum PV Array Open Circuit Voltage: 550 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 120A
    • Maximum Charge Current: 120A


    PHYSICAL

    • Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
    • Net Weight: 40.6 lb
    • Communication Interface: USB/RS232/RS485/WiFi/Dry-contact


    OPERATING ENVIRONMENT

    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: -14°F to 104°F
    • Storage Temperature: 5°F to 140°F


    STANDARD

    • Compliance Safety: UL 1741 by TUV
