Rich Solar Complete Off-Grid Solar Kit | 38 x MEGA 335 Solar Panels | 13,000W 120/240V Output | 48VDC

Rich Solar Complete Off-Grid Solar Kit | 38 x MEGA 335 Solar Panels | 13,000W 120/240V Output | 48VDC

$21,499.99 - $21,499.99
$21,499.99
$21,499.99 - $21,499.99
$21,499.99
Availability:
in stock, ready to be shipped

Everything you need to go completely Off-Grid! Best value on the market! Ships from California! Call us for any questions! Free technical support!

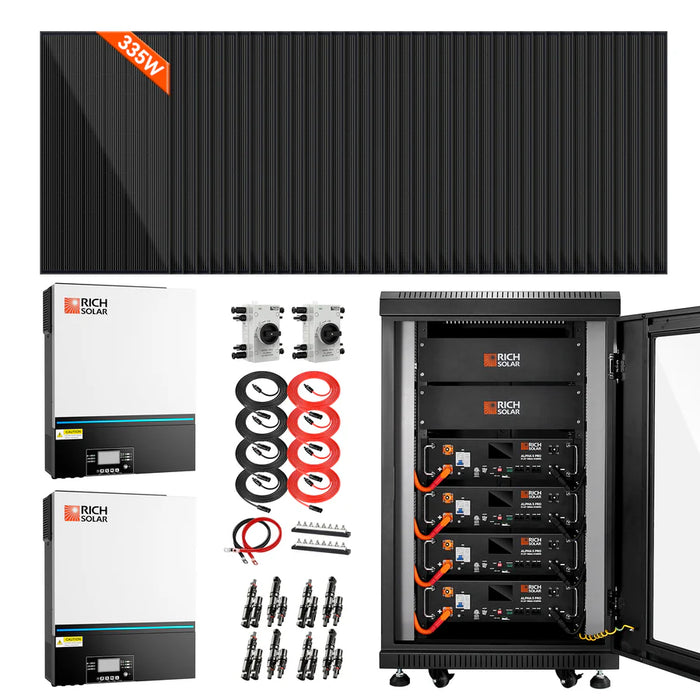

Kit Includes:

  • 38 x MEGA 335 Watt Monocrystalline Solar Panel (RS-M335P)
  • 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
  • 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
  • 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
  • 2 x Busbar 600 AMP
  • 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
  • 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
  • 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
  • 1 x Free Battery Rack

  • MEGA 335 Watt Solar Panels

    • No. of Panels: 38 x MEGA 335 Solar Panels
    • Wattage Per Panel: 335W
    • Total Wattage of Panels: 12.7KW

    Features:

    • Generates 9.8 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
    • Excellent low-light performance even on early mornings, evenings, and cloudy days.
    • Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters

    Warranty:

    • 25-year limited power output warranty
    • 10-year workmanship warranty

    Specifications:

    • Maximum Power(Pmax): 335W
    • Maximum Power Voltage(Vmp): 38.2V
    • Maximum Power Current(Imp): 8.77A
    • Open Circuit Voltage(Voc): 47.6V
    • Short Circuit Current(Isc): 9.19A
    • Maximum System Voltage(Vmax): 1500VDC
    • Temperature Range: -40°F ~ 185°F
    • Max Series Fuse Rating: 20A
    • Dimensions: 69.3 x 34.6 x 1.2 in
    • Weight: 39.3 lb

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Battery

    • No. of Batteries: 4 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

    Features:

    • Certification: UL1973, UL9540A, FCC
    • 7,000 Deep Cycles Life
    • 5120 Watt Hours Energy
    • 100A Continuous Charge Current
    • Compatible with multiple brands of inverters
    • Low maintenance
    • Over charging or discharging protection
    • Overcurrent & short circuit protection
    • Parallel up to 15 Batteries
    • Connect in Parallel for Larger Capacity
    • With Sophisticated Battery Management System (BMS)
    • 10 Years Lifespan

    Warranty:

    • *10-Year Warranty

    Specifications:

    Electrical Specifications

    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Minimum Capacity: 99.5Ah
    • Nominal Capacity: 5120Wh

    Operating Specifications

    • Charging Voltage: 56V
    • Discharging Cutoff Voltage: 44.8V
    • Maximum Charging Current: 100A
    • Continuous Charge Current: 100A
    • Maximum Discharge Current: 100A

    Physical Specifications

    • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
    • Battery Weight: 99.2 lb
    • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
    • Server Rack Weight: 196.2 lb

    BMS Operation

    • Operation Voltage: 43.2~58.4V
    • Maximum Charging Current: 100A
    • Maximum Discharging Current: 100A
    • Maximum Charge Voltage (CC/CV): 57.6V
    • Overcharge Protection Voltage (Battery): 58.4V
    • Overcharge Protection Release Voltage (Battery): 54V
    • Over Discharge Protection Voltage (Battery): 43.2V
    • Over Discharge Protection Release Voltage (Battery): 47.2V
    • Over Discharge Primary Charge Overcurrent Protection Value: 110A
    • First Stage Charge Over Current Delay: 1s
    • Primary Discharge Overcurrent Protection Value: 110A
    • Primary Discharge Overcurrent Protection Delay: 1s
    • Secondary Discharge Overcurrent Protection Value: 150A
    • Secondary Discharge Overcurrent Protection Delay: 500ms

    Temperature Performance

    • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
    • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
    • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
    • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

    Others

    • Certification: UL1973, UL9540A, FCC
    • Max. Expansion: 15 pcs in parallel
    • Communication Ports: RS485/RS232/CAN
    • Warranty: 10 Years Manufacturer Defect

  • NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverter

    • No. of Hybrid Solar Inverters: 2 x NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverters

    Features:

    • Pure Sine Wave Inverter
    • Configurable color with the built-in RGB LED bar
    • Built-in Wi-Fi for mobile monitoring (APP is required)
    • Supports USB On-the-Go function
    • Built-in anti-dusk kit
    • Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
    • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
    • Configurable AC/PV output usage timer and prioritization
    • Configurable AC/Solar charger priority via LCD control panel
    • Configurable battery charging current based on applications via LCD control panel
    • Compatible with utility mains or generator power
    • Auto restart while AC is recovering
    • Overload/over temperature/short circuit protection
    • Parallel operation with 6 units
    • Smart battery charger design for optimized battery performance
    • Cold start function

    Warranty:

    • 3-Year Warranty

    Specifications:

    Model: RS-H6548
    Rated Inverter Power: 6500VA/6500W
    PARALLEL CAPABILITY: Yes, 6 units

    INPUT

    • Voltage: 120 VAC
    • Selectable Voltage Range: 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances)
    • Frequency Range: 50 Hz/60 Hz (Auto Sensing)


    OUTPUT

    • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
    • Surge Power: 2* rated power for 5 seconds
    • Efficiency (Peak): 91%
    • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
    • Waveform: Pure Sine Wave
    • Optional DC Voltage: 12 VDC ± 7%, 100W


    BATTERY

    • Battery Voltage: 48 VDC
    • Float Charging Voltage: 54 VDC
    • Overcharge Protection: 66 VDC


    SOLAR CHARGER & AC CHARGER

    • Solar Charger Type: MPPT
    • Maximum PV Array Power: 8000W (4000W x 2)
    • MPPT Operating Voltage Range: 90 ~ 450 VDC
    • Maximum PV Array Open Circuit Voltage: 550 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 120A
    • Maximum Charge Current: 120A


    PHYSICAL

    • Dimensions (D X W X H): 5.8 x 17.0 x 21.8 in
    • Net Weight: 40.6 lb
    • Communication Interface: USB/RS232/RS485/WiFi/Dry-contact


    OPERATING ENVIRONMENT

    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: -14°F to 104°F
    • Storage Temperature: 5°F to 140°F


    STANDARD

    • Compliance Safety: UL 1741 by TUV
