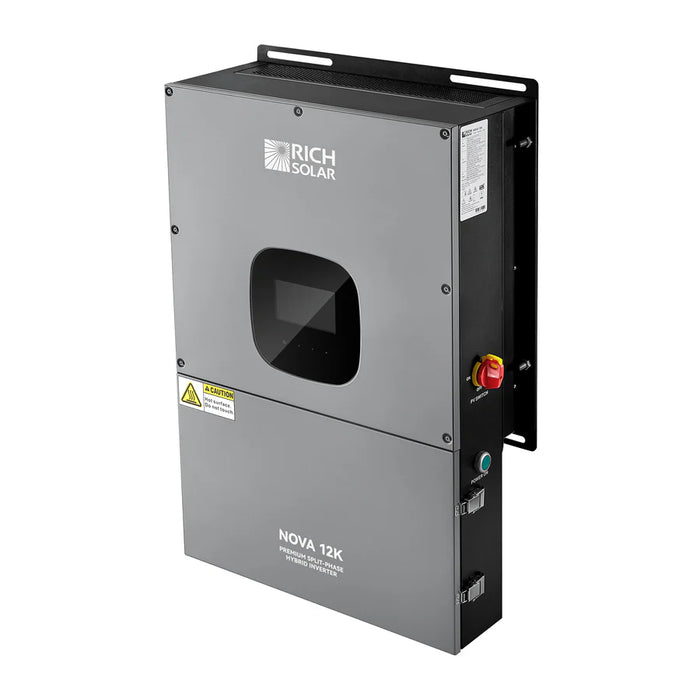

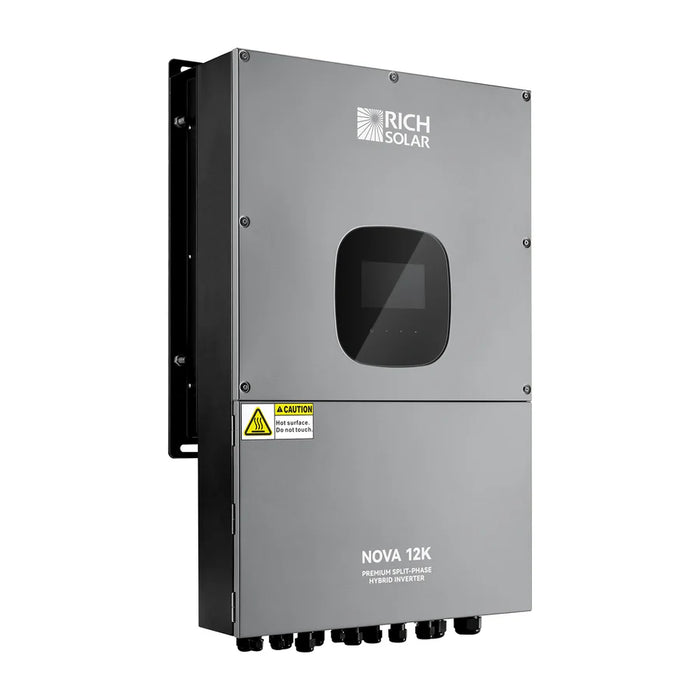

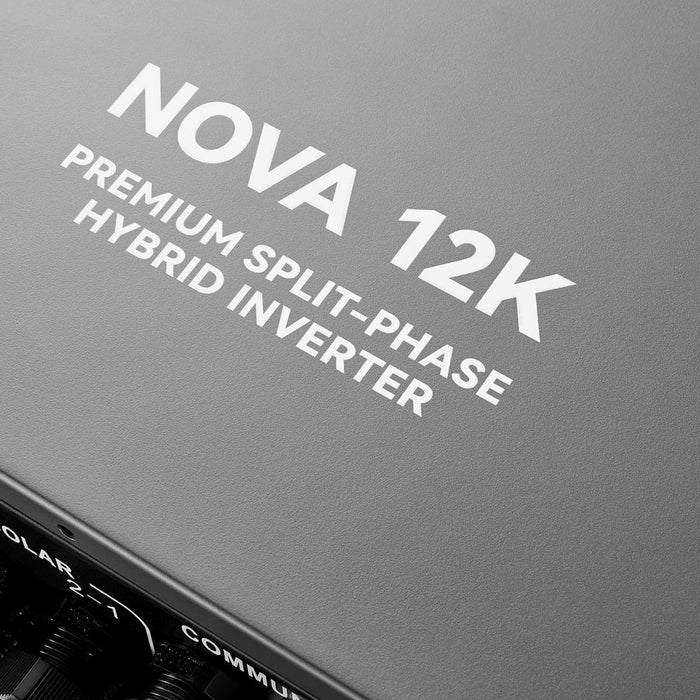

Rich Solar NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

Features

• 120/240V split-phase or 120/208V split-phase
• Supports generator input & AC coupling
• Scalable to 6 parallel units

• Real-time monitoring via WiFi & mobile app
• BMS integration through RS485 interface
• External CT sensor for 100% self-consumption

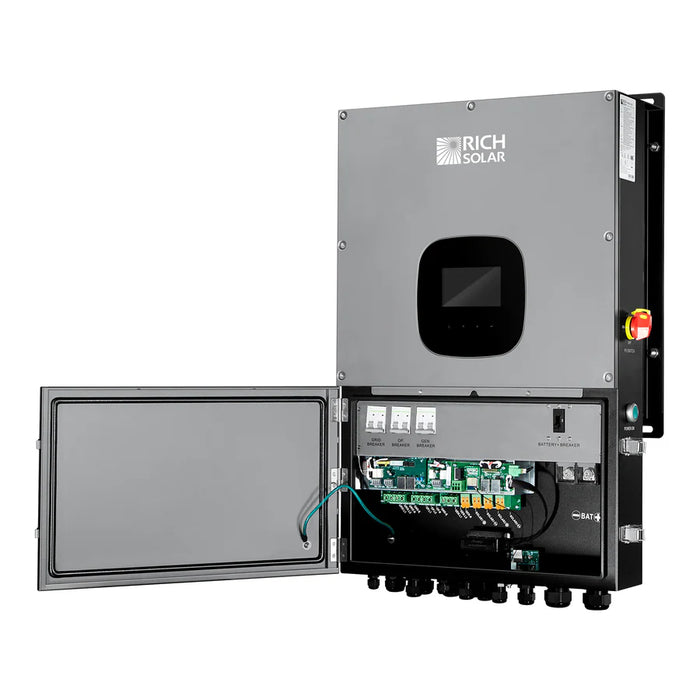

• 300A DC + 60A AC Integrated breaker
• AFD/RSD (NEC 690.11/690.12)
• Ground fault detection (NEC 690.5)
• PV input lightning protection

• 91% DC-to-AC efficiency | Pure sine wave
• Multi-mode operation: Grid-tie/Off-grid/Hybrid

Specifications

• Maximum PV input power: 12000W
• Parallel capability: 6 units

• Input

  • Maximum PV input power: 12000W
  • Voltage range: 120–550VDC
  • Startup voltage: 125V
  • Mppt: Dual inputs — 2 × 18A (30A peak)

• Output

  • Rated output power: 10000VA/10000W
  • Nominal output voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
  • Output voltage range: 105.5–132VAC per phase
  • Nominal output current: 41.7A per phase

• Battery

  • Battery DC voltage range: 40–62VDC/48VDC
  • Maximum solar charging current: 200A
  • Maximum AC charging current: 200A
  • Maximum charging current: 200A

• Operating Environment

  • Operating temperature range: -13°F to 140°F(>113°F derating)
  • Protection degree: IP65
  • Communication port: RS232, RS485, Wi-Fi, USB

• Physical

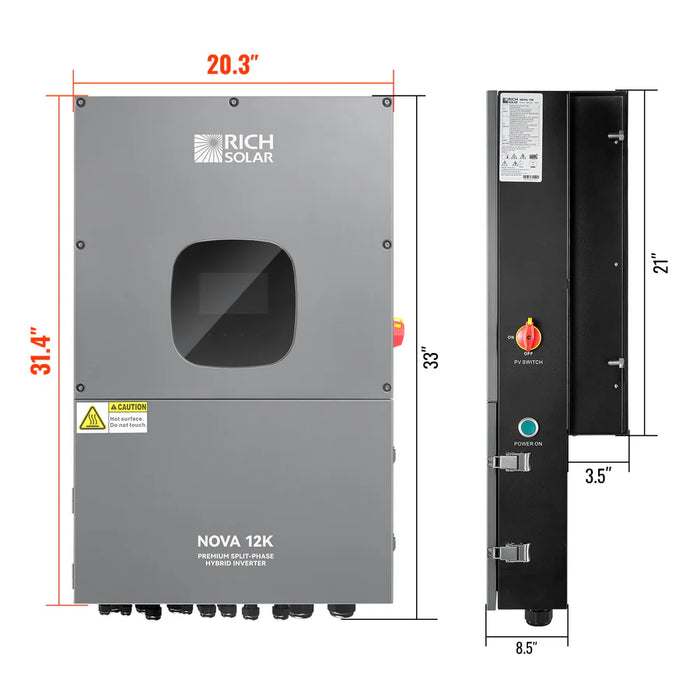

  • Dimension (LxWxH): 8.5x20.3x28.1in/215x516x714mm
  • Net weight: 112lb/51kg

• Certificate

  • Ul 1741SA/SB, CSA C22.2 No.107.1, IEEE 1547
  • Cec-listed, FCC Part 15 Class B
  • Compliant with CA rule 21 and HECO rule 14H
