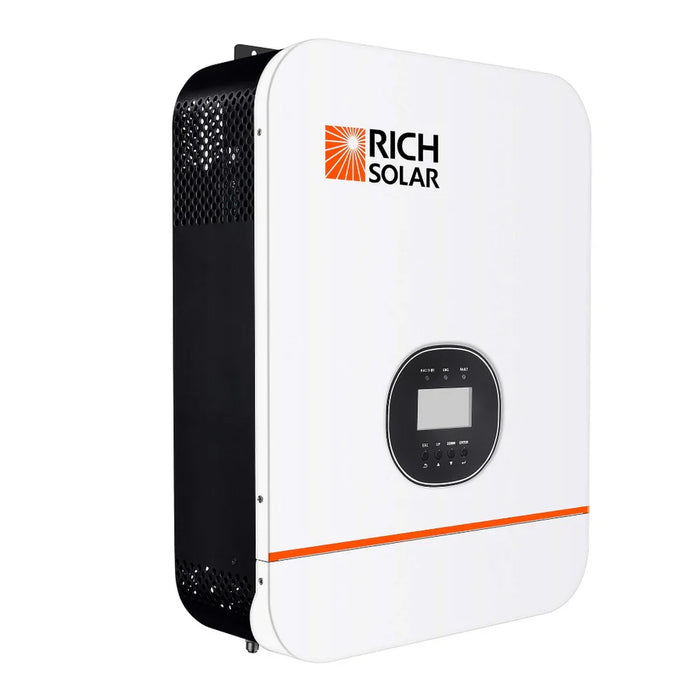

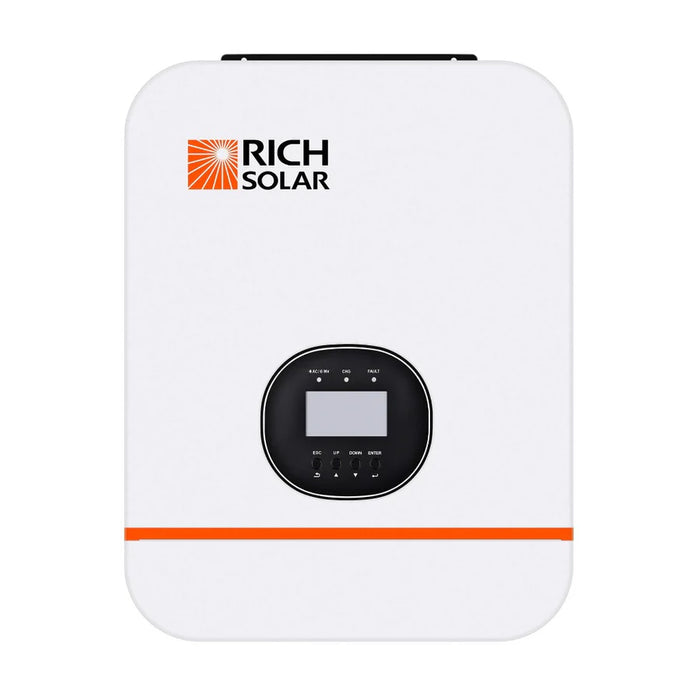

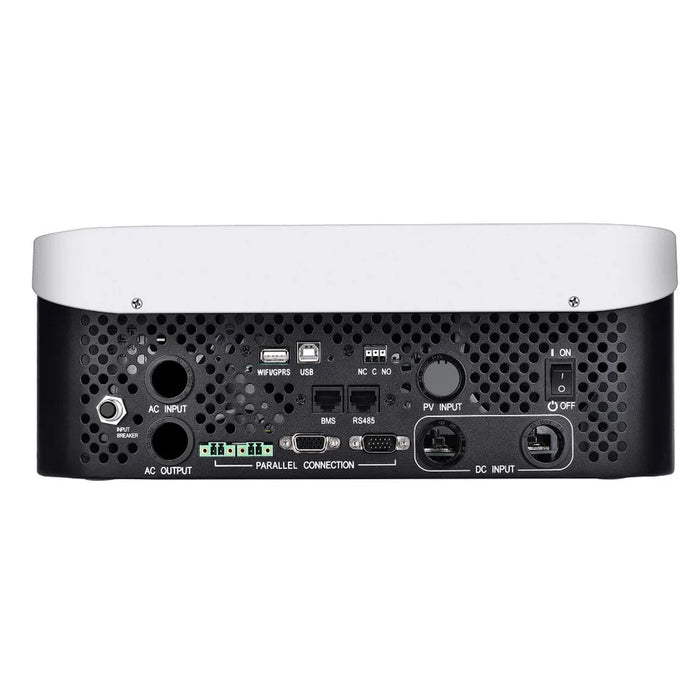

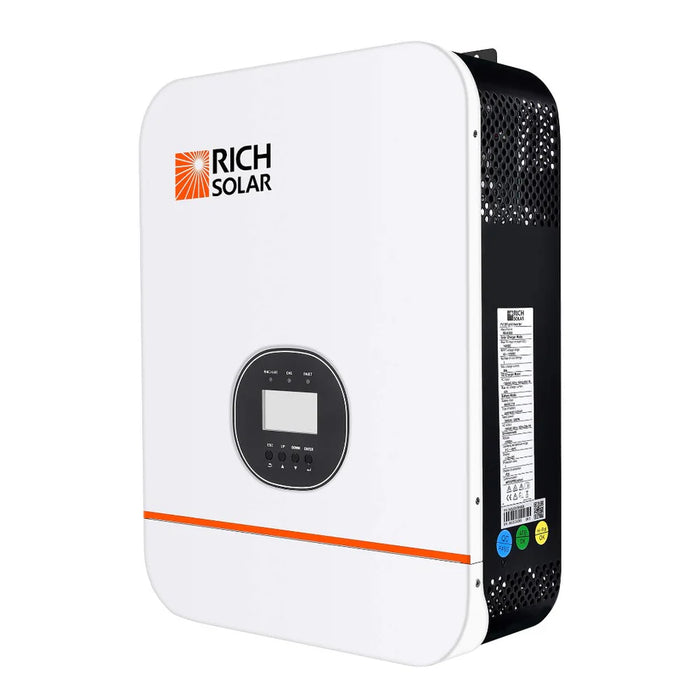

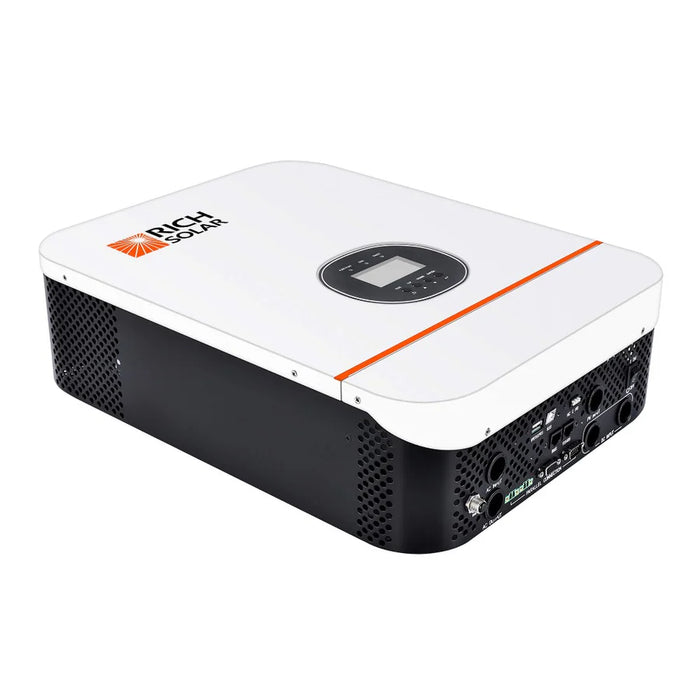

Rich Solar NOVA 3K | 3000 Watt (3kW) 48 Volt Off-Grid Hybrid Solar Inverter | Premium 3000W 48V Hybrid Inverter for RVs, Cabins, Tiny Homes, Off-Grid | Top Rated

Features

• Pure Sine Wave Inverter
• LED Display
• Wi-Fi/GPRS Remote Monitoring (optional)
• CAN/RS485 for BMS Communication
• Integrated MPPT Charge Controller
• Configurable Grid or Solar Input Priority
• 48V Battery System
• Compatible with Mains Voltage or Generator Power
• High-Frequency Inverter with Small Size and Lightweight
• Overload, Short Circuit and Deep Discharge Protection
• Parallel Operation Up to 6 Units Off-grid Capabilities

Specifications

• • Rated Power: 3000VA/3000W
  • Parallel Capability: Yes
  • AC Voltage Regulation (Battery Mode): 120 VAC
  • Efficiency (Peak): 90%
  • Waveform: Pure Sine Wave
  • Transfer Time: 10ms Typical, 20ms Max @ Single <30ms @ Parallel
  • Weight: 25.4 Lb
  • Dimensions: 13.8″L x 5.1″W x 17.9″H

• Solar Charger Input

  • PV Array MPPT Voltage Range: 60VDC ~ 115VDC
  • Maximum PV Array Open Circuit Voltage: 145VDC
  • Waveform: Pure Sine Wave
  • Max Solar Charge Current: 80A
  • Maximum Efficiency: 98%
  • Standby Power Consumption: <50W

• AC Outlet Charger

  • Charge Current: Default: 30A, Max 40A
  • AC Input Voltage: 120VAC
  • Selectable Voltage Range: 95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances)
  • Frequency Range: 50Hz/60Hz (Auto Sensing)

• Operating Environment

  • Humidity: 5% to 95% Relative (Non-Condensing)
  • Operating Temperature: 0°C – 55°C
  • Storage Temperature: -15°C – 60°C
