Rich Solar 1250W 48VDC-120VAC Solar Kit

Rich Solar 1250W 48VDC-120VAC Solar Kit

4.8 574+ online reviews
$4,999.99 - $4,999.99
$4,999.99
$4,999.99 - $4,999.99
$4,999.99
Availability:
in stock, ready to be shipped

Looking for the best off-grid solar system? Our Cabin Kits are perfect for tiny homes, RVs, and many more off-grid applications. Start your solar adventure today with a great camper solar setup!

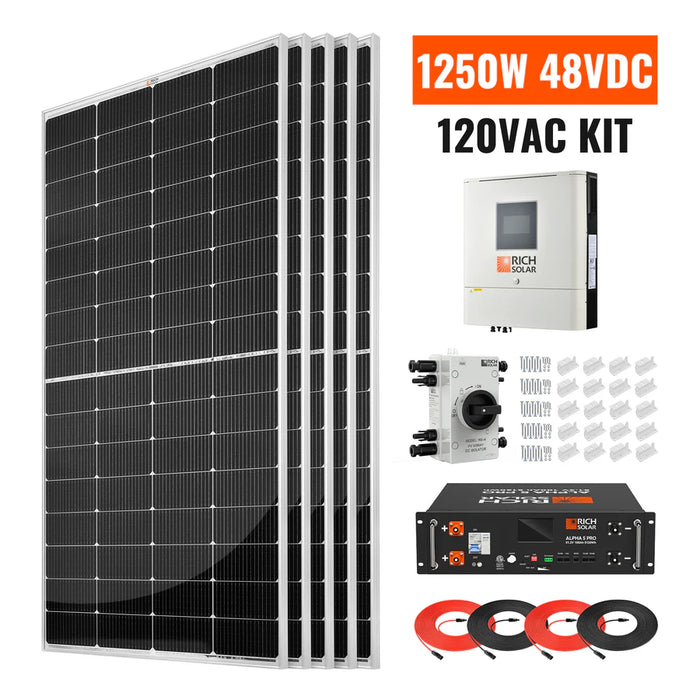

This kit includes:

  • 1 x 6500W 48V Off-grid Solar Inverter (H6548S)
  • 5 x MEGA 250W Monocrystalline Panel (RS-M250)
  • 1 x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P)
  • 1 x 10AWG 30FT Extension Cable (RS-30102)
  • 1 x 10AWG 10FT Extension Cable (RS-10102)
  • 8 x Z-Brackets (RS-ZB4C)
  • 1 x PV DC Quick Disconnect (RS-i4)

  • MEGA 250 Watt Solar Panel

    • No. of Panels: 5 x MEGA 250Watt Solar Panels
    • Wattage Per Panel: 250W
    • Total Wattage of Panels: 1250W

    Features:

    • 16-busbar solar cell configuration
    • Lightweight anodized aluminum frame
    • High Transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug and play junction box
    • Industry standard quick-connect cables work in series or parallel
    • Certified to withstand challenging environmental conditions
    • Excellent low-light performance on cloudy days, mornings and evenings

    Warranty:

    • 25-year output warranty
    • 10-year workmanship warranty



    Specifications:

    • Model: RS-M250
    • Maximum Power (Pmax): 250W
    • Maximum Power Voltage (Vmp): 18.9V
    • Maximum Power Current (Imp): 13.2A
    • Open Circuit Voltage (Voc): 22.8V
    • Short Circuit Current (Isc): 13.7A
    • Maximum System Voltage (Vmax): 1500VDC
    • Temperature Range: -40 ~ +185℉
    • Weight: 26.9 lb
    • Dimensions: 60.6 x 29.9 x 1.2 in

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery

    Features:

    • Certification: UL1973, UL9540A, FCC
    • 7,000 Deep Cycles Life
    • 5120 Watt Hours Energy
    • 100A Continuous Charge Current
    • Compatible with multiple brands of inverters
    • Low maintenance
    • Over charging or discharging protection
    • Overcurrent & short circuit protection
    • Parallel up to 15 Batteries
    • Connect in Parallel for Larger Capacity
    • With Sophisticated Battery Management System (BMS)
    • 10 Years Lifespan

    Warranty:

    • *10-Year Warranty

    Specifications:

    Electrical Specifications

    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Minimum Capacity: 99.5Ah
    • Nominal Capacity: 5120Wh

    Operating Specifications

    • Charging Voltage: 56V
    • Discharging Cutoff Voltage: 44.8V
    • Maximum Charging Current: 100A
    • Continuous Charge Current: 100A
    • Maximum Discharge Current: 100A

    Physical Specifications

    • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
    • Battery Weight: 99.2 lb
    • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
    • Server Rack Weight: 196.2 lb

    BMS Operation

    • Operation Voltage: 43.2~58.4V
    • Maximum Charging Current: 100A
    • Maximum Discharging Current: 100A
    • Maximum Charge Voltage (CC/CV): 57.6V
    • Overcharge Protection Voltage (Battery): 58.4V
    • Overcharge Protection Release Voltage (Battery): 54V
    • Over Discharge Protection Voltage (Battery): 43.2V
    • Over Discharge Protection Release Voltage (Battery): 47.2V
    • Over Discharge Primary Charge Overcurrent Protection Value: 110A
    • First Stage Charge Over Current Delay: 1s
    • Primary Discharge Overcurrent Protection Value: 110A
    • Primary Discharge Overcurrent Protection Delay: 1s
    • Secondary Discharge Overcurrent Protection Value: 150A
    • Secondary Discharge Overcurrent Protection Delay: 500ms

    Temperature Performance

    • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
    • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
    • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
    • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

    Others

    • Certification: UL1973, UL9540A, FCC
    • Max. Expansion: 15 pcs in parallel
    • Communication Ports: RS485/RS232/CAN
    • Warranty: 10 Years Manufacturer Defect

  • NOVA 6500S 48V Off-grid Solar Inverter

    Features:

    • UL Certification
    • Status indication with RGB lights
    • Built-in Wi-Fi for mobile monitoring (Android/iOS)
    • Supports USB on-the-go function
    • Data log events stored in the inverter
    • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
    • Replaceable fan design for ease of maintenance
    • Battery independent design
    • Configurable AC/PV output usage timer and prioritization
    • Adjustable high-power charging current
    • Adjustable input voltage range for home appliances and personal computers
    • Compatible with Utility Mains or generator input
    • Built-in anti-dust kit
    • Optional DC output for DC fan, LED bulb, router, etc.
    • 6-unit parallel operation capabilities

    Warranty:

    • 3-Year Warranty

    Specifications:

    Model: RS-H6548S
    Rated Inverter Power: 6500VA/6500W
    PARALLEL CAPABILITY: Yes, 6 units


    INPUT

    • Voltage: 120 VAC
    • Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
    • Frequency Range: 50 Hz/60 Hz (Auto Sensing)


    OUTPUT

    • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
    • Surge Power: 13000VA
    • Efficiency (Peak): 91%
    • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
    • Waveform: Pure Sine Wave
    • No Load Power Consumption: <75W
    • DC Voltage: 12 VDC ± 5%, 100W


    BATTERY

    • Battery Voltage: 48 VDC
    • Float Charging Voltage: 54 VDC
    • Overcharge Protection: 66 VDC


    SOLAR CHARGER & AC CHARGER

    • Solar Charger Type: MPPT
    • Maximum PV Array Power: 8000W (4000W x 2)
    • MPPT Operating Voltage Range: 90 ~ 230 VDC
    • Maximum PV Array Open Circuit Voltage: 250 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 120A
    • Maximum Charge Current: 120A


    PHYSICAL

    • Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
    • Net Weight: 44 lb
    • Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact


    OPERATING ENVIRONMENT

    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: 14°F to 104°F
    • Storage Temperature: 5°F to 140°F


    STANDARD

    • Compliance Safety: UL

4.8

574+ online ratings
The summary star rating & review is based on aggregated reviews of this product across the web. It cannot be altered by the merchant and can be verified by emailing support@onereview.app.

Rich Solar 1250W 48VDC-120VAC Solar Kit Review Summary

4.8

574+ online ratings
The summary star rating & review is based on aggregated reviews of this product across the web. It cannot be altered by the merchant and can be verified by emailing support@onereview.app.

What people like

This solar kit is generally regarded as a comprehensive and effective solution for various off-grid applications such as tiny homes, RVs, and cabins. It is frequently highlighted for its ability to provide consistent and sustainable energy, with reviewers often praising the quality of its components and the all-inclusive nature of the package. While initial customer service for ordering is sometimes viewed positively, some significant concerns have been raised regarding delayed orders, unexpected price increases after purchase, and prolonged uncertainty in order fulfillment.

Pros

  • Quality Components: The kit is noted for its well-built materials and design, including high-efficiency monocrystalline panels and a robust lithium battery.
  • All-in-one Solution: It is praised as a complete package that includes all necessary components for installation, such as the inverter, panels, battery, and cables.
  • Off-Grid Suitability: The system is considered ideal for various off-grid applications like tiny homes, RVs, and cabins.
  • Reliable Power: Users appreciate its capability to deliver dependable and consistent power for a range of appliances.

Cons

  • Customer Service/Pricing Issues: Some customers have experienced significant problems with customer service, including delayed orders, unexpected price increases after purchase, and being left in limbo for months before order cancellation.
  • Rebranded Budget Equipment Concerns: There are opinions suggesting that the kit's components might be rebranded budget Chinese equipment, raising questions about long-term reliability and support, particularly concerning the inverter.
Powered by OneReview
