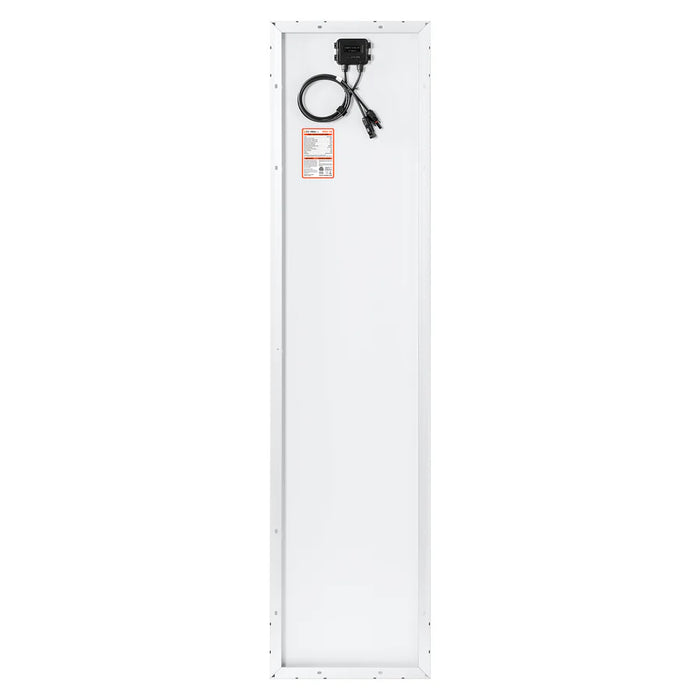

Rich Solar MEGA 130 SLIM | 130 Watt Slim Solar Panel | Compact 12V Narrow Panel for Vans, Campers, Boats | UL Certified BACKORDER

Features

• 16-busbar solar cell configuration

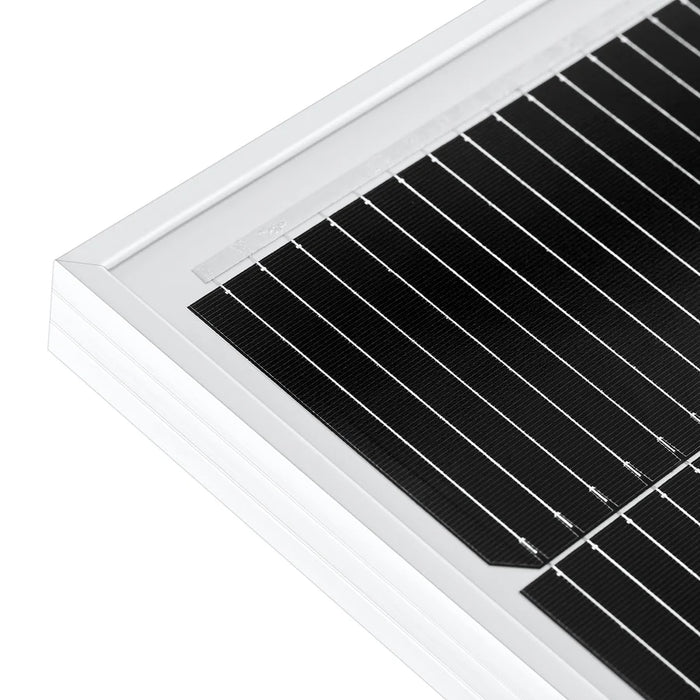

• Lightweight, anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug-and-play junction box
• Industry-standard quick-connect cables work in series or parallel
• Excellent low-light performance on cloudy days, mornings and evenings
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)

• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters


Warranty

• 25-year output warranty

• 10-year workmanship warranty

Built-in Components

• Panel leads (pair): 3 feet each

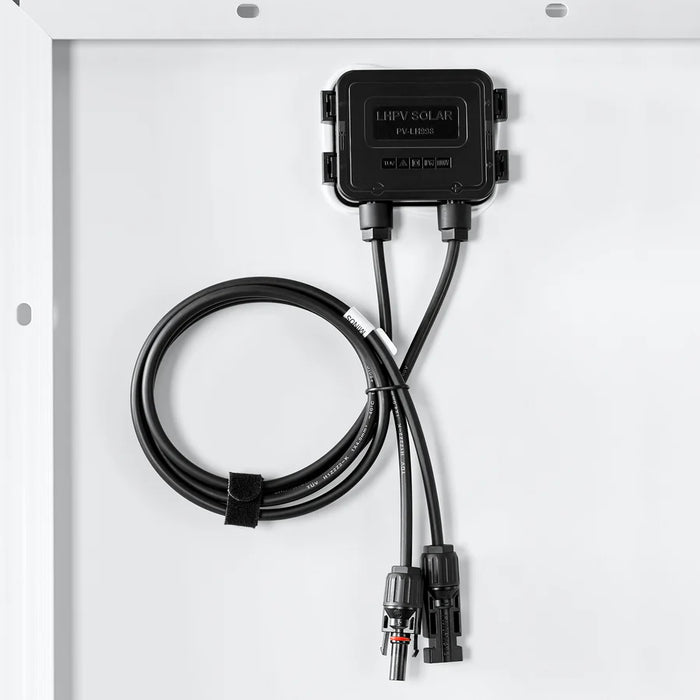

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors
• Bypass diodes built into the junction box

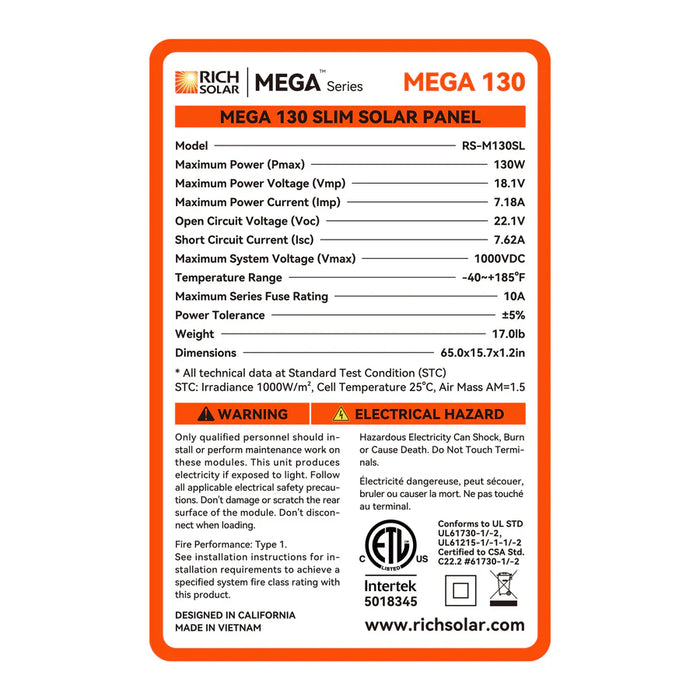

Specifications

• Model: RS-M130SL
• Maximum Power(Pmax): 130W
• Maximum Power Voltage(Vmp): 18.1V
• Maximum Power Current(Imp): 7.18A
• Open Circuit Voltage(Voc): 22.1V
• Short Circuit Current(Isc): 7.62A
• Maximum System Voltage(Vmax): 1000 VDC
• Maximum Series Fuse Rating: 10A
• Module Efficiency: 19.7%
• Temperature Range: -40℉ to +185℉
• Weight: 17.0lb (7.7kg)

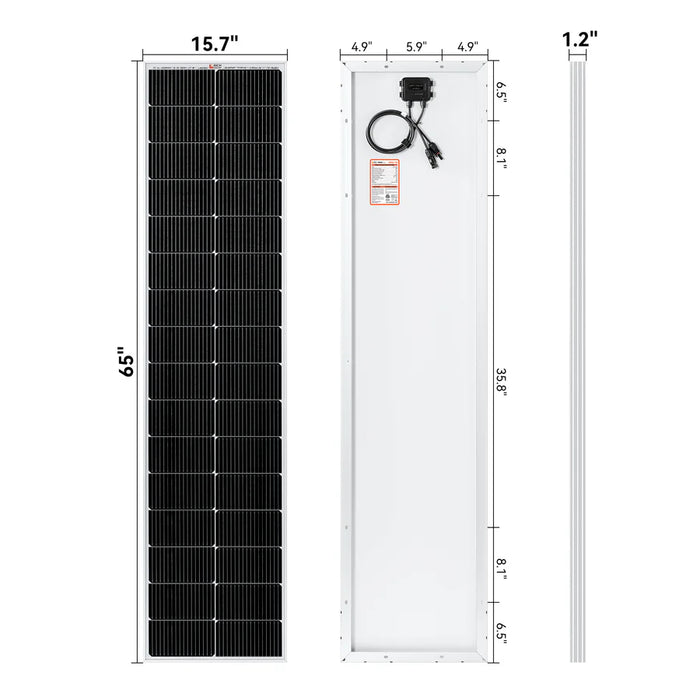

• Dimensions: 65.0in x 15.7in x 1.2in (1650mm x 400mm x 30mm
