Rich Solar 2500W 48VDC-120VAC Solar Kit

Rich Solar 2500W 48VDC-120VAC Solar Kit

Sold out
$7,999.99 - $7,999.99
$7,999.99
$7,999.99 - $7,999.99
$7,999.99
Availability:
Out of stock

Looking for the best off-grid solar system? Our Cabin Kits are perfect for tiny homes, RVs, and many more off-grid applications. Start your solar adventure today with a great camper solar setup today!

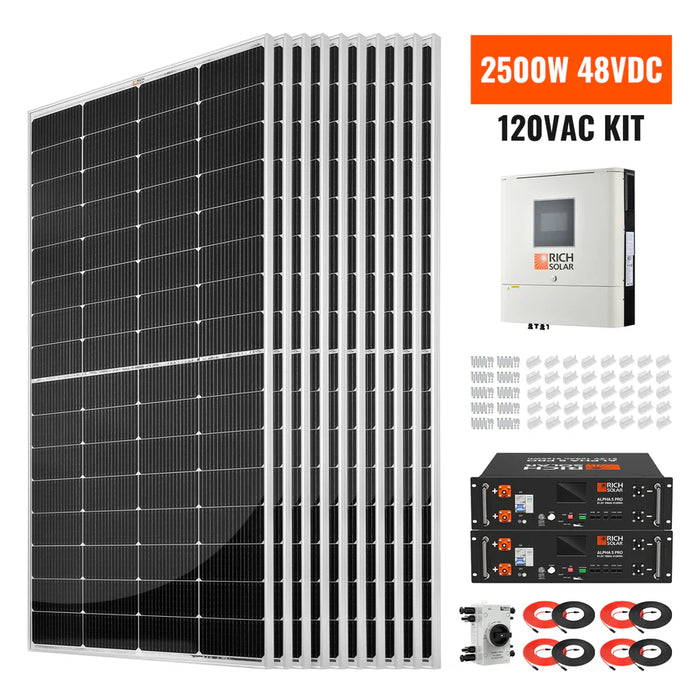

This kit includes:

  • 1 x 6500W 48V Off-grid Solar Inverter (H6548S)
  • 10 x MEGA 250W Monocrystalline Panel (RS-M250)
  • 2 x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P)
  • 2 x 10AWG 30FT Extension Cable (RS-30102)
  • 2 x 10AWG 10FT Extension Cable (RS-10102)
  • 15 x Z-Brackets (RS-ZB4C)
  • 1 x PV DC Quick Disconnect (RS-i4)

  • MEGA 250 Watt Solar Panel

    • No. of Panels: 10 x MEGA 250Watt Solar Panels
    • Wattage Per Panel: 250W
    • Total Wattage of Panels: 2500W

    Features:

    • 16-busbar solar cell configuration
    • Lightweight anodized aluminum frame
    • High Transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug and play junction box
    • Industry standard quick-connect cables work in series or parallel
    • Certified to withstand challenging environmental conditions
    • Excellent low-light performance on cloudy days, mornings and evenings

    Warranty:

    • 25-year output warranty
    • 10-year workmanship warranty



    Specifications:

    • Model: RS-M250
    • Maximum Power (Pmax): 250W
    • Maximum Power Voltage (Vmp): 18.9V
    • Maximum Power Current (Imp): 13.2A
    • Open Circuit Voltage (Voc): 22.8V
    • Short Circuit Current (Isc): 13.7A
    • Maximum System Voltage (Vmax): 1500VDC
    • Temperature Range: -40 ~ +185℉
    • Weight: 26.9 lb
    • Dimensions: 60.6 x 29.9 x 1.2 in

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Battery

    • No. of Batteries: 2 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

    Features:

    • Certification: UL1973, UL9540A, FCC
    • 7,000 Deep Cycles Life
    • 5120 Watt Hours Energy
    • 100A Continuous Charge Current
    • Compatible with multiple brands of inverters
    • Low maintenance
    • Over charging or discharging protection
    • Overcurrent & short circuit protection
    • Parallel up to 15 Batteries
    • Connect in Parallel for Larger Capacity
    • With Sophisticated Battery Management System (BMS)
    • 10 Years Lifespan

    Warranty:

    • *10-Year Warranty

    Specifications:

    Electrical Specifications

    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Minimum Capacity: 99.5Ah
    • Nominal Capacity: 5120Wh

    Operating Specifications

    • Charging Voltage: 56V
    • Discharging Cutoff Voltage: 44.8V
    • Maximum Charging Current: 100A
    • Continuous Charge Current: 100A
    • Maximum Discharge Current: 100A

    Physical Specifications

    • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
    • Battery Weight: 99.2 lb
    • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
    • Server Rack Weight: 196.2 lb

    BMS Operation

    • Operation Voltage: 43.2~58.4V
    • Maximum Charging Current: 100A
    • Maximum Discharging Current: 100A
    • Maximum Charge Voltage (CC/CV): 57.6V
    • Overcharge Protection Voltage (Battery): 58.4V
    • Overcharge Protection Release Voltage (Battery): 54V
    • Over Discharge Protection Voltage (Battery): 43.2V
    • Over Discharge Protection Release Voltage (Battery): 47.2V
    • Over Discharge Primary Charge Overcurrent Protection Value: 110A
    • First Stage Charge Over Current Delay: 1s
    • Primary Discharge Overcurrent Protection Value: 110A
    • Primary Discharge Overcurrent Protection Delay: 1s
    • Secondary Discharge Overcurrent Protection Value: 150A
    • Secondary Discharge Overcurrent Protection Delay: 500ms

    Temperature Performance

    • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
    • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
    • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
    • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

    Others

    • Certification: UL1973, UL9540A, FCC
    • Max. Expansion: 15 pcs in parallel
    • Communication Ports: RS485/RS232/CAN
    • Warranty: 10 Years Manufacturer Defect

  • NOVA 6500S 48V Off-grid Solar Inverter

    Features:

    • UL Certification
    • Status indication with RGB lights
    • Built-in Wi-Fi for mobile monitoring (Android/iOS)
    • Supports USB on-the-go function
    • Data log events stored in the inverter
    • Reserved communication port for BMS (RS485, CAN-BUS or RS232)
    • Replaceable fan design for ease of maintenance
    • Battery independent design
    • Configurable AC/PV output usage timer and prioritization
    • Adjustable high-power charging current
    • Adjustable input voltage range for home appliances and personal computers
    • Compatible with Utility Mains or generator input
    • Built-in anti-dust kit
    • Optional DC output for DC fan, LED bulb, router, etc.
    • 6-unit parallel operation capabilities

    Warranty:

    • 3-Year Warranty

    Specifications:

    Model: RS-H6548S
    Rated Inverter Power: 6500VA/6500W
    PARALLEL CAPABILITY: Yes, 6 units


    INPUT

    • Voltage: 120 VAC
    • Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
    • Frequency Range: 50 Hz/60 Hz (Auto Sensing)


    OUTPUT

    • AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
    • Surge Power: 13000VA
    • Efficiency (Peak): 91%
    • Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
    • Waveform: Pure Sine Wave
    • No Load Power Consumption: <75W
    • DC Voltage: 12 VDC ± 5%, 100W


    BATTERY

    • Battery Voltage: 48 VDC
    • Float Charging Voltage: 54 VDC
    • Overcharge Protection: 66 VDC


    SOLAR CHARGER & AC CHARGER

    • Solar Charger Type: MPPT
    • Maximum PV Array Power: 8000W (4000W x 2)
    • MPPT Operating Voltage Range: 90 ~ 230 VDC
    • Maximum PV Array Open Circuit Voltage: 250 VDC
    • Maximum Solar Charge Current: 120A
    • Maximum AC Charge Current: 120A
    • Maximum Charge Current: 120A


    PHYSICAL

    • Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
    • Net Weight: 44 lb
    • Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact


    OPERATING ENVIRONMENT

    • Humidity: 5% to 95% Relative Humidity (Non-condensing)
    • Operating Temperature: 14°F to 104°F
    • Storage Temperature: 5°F to 140°F


    STANDARD

    • Compliance Safety: UL
