Rich Solar 4000 Watt Solar | 48V 6500W/120V | All-in-One Kit

Rich Solar 4000 Watt Solar | 48V 6500W/120V | All-in-One Kit

$9,999.99 - $9,999.99
$9,999.99
$9,999.99 - $9,999.99
$9,999.99
Availability:
in stock, ready to be shipped

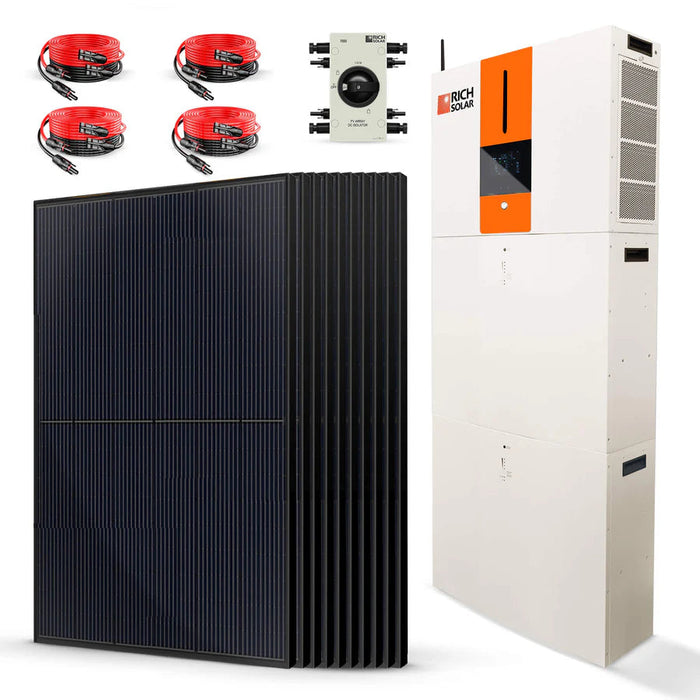

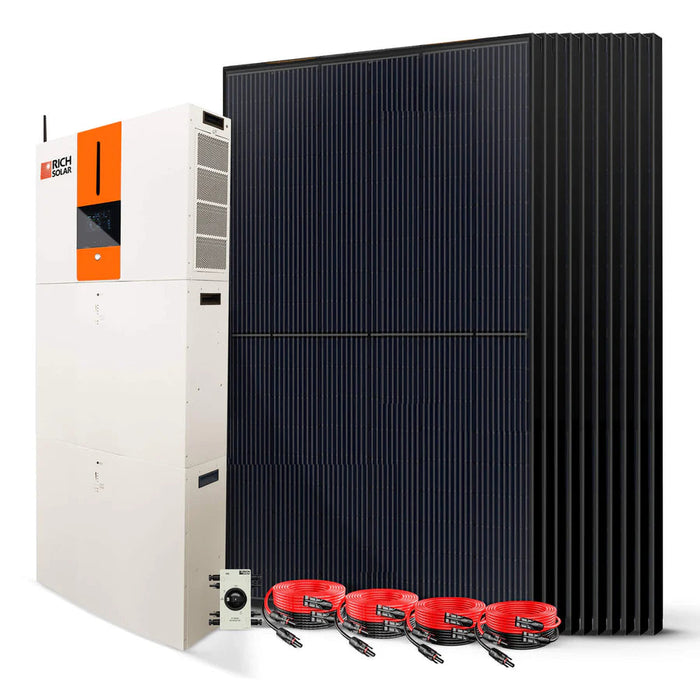

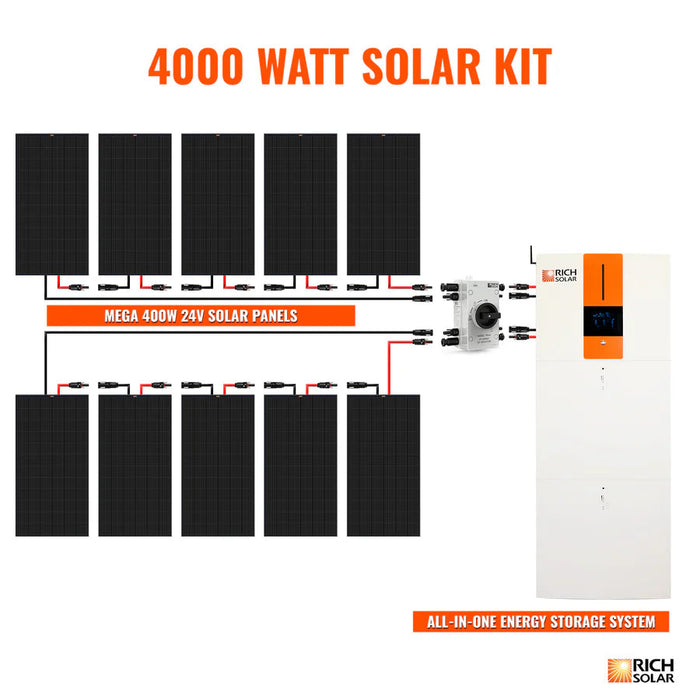

Kit Includes:

  • 1x All-in-One Energy Storage System
  • 10x MEGA 400 Watt Monocrystalline Solar Panels
  • 2x 10 Gauge Solar Panel Extension Cable with Male and Female Solar Connector Ends
  • 2x 10 Gauge Extension Cable to Connect Solar Panel to Charge Controller
  • 1x Solar PV DC Quick Disconnect Switch

  • All-in-One Energy Storage System

    The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

    Features:

    • Pure sine wave output
    • Off-Grid application
    • Programmable supply priority for PV, Battery, or Grid
    • User-adjustable battery charging current
    • Battery independent design
    • Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi
    • Monitoring APP (Android and iOS) for real-time status display and parameter control
    • Built-in 2 MPPT trackers and AC/Solar charger up to 120A
    • Compatible with utility and generator
    • Scalable Li-Ion battery expansion

    Specifications:

    Battery Info:

    • Model: RS-A10
    • Maximum PV Input Power: 8000W
    • Rated Output Power: 6500W
    • Maximum Charging Power: 6500W

    PV Input (DC):

    • MPPT Range @ Operating Voltage: 90 ~ 230 VDC
    • Maximum PV Array Open Circuit Voltage: 250 VDC
    • Maximum Solar Charge Current: 120A
    • Number of MPP Trackers / Maximum Input Current: 2 / 2 x 18 A

    AC Input:

    • Acceptable Input Voltage Range: 90-140 VAC (For Computers) | 80-140 VAC (For Home Appliances)
    • Maximum AC Input Current: 60A

    Battery Mode Output:

    • Nominal Output Voltage: 120 VAC
    • Maximum Conversion Efficiency (DC/AC): 93%

    Battery:

    • Nominal DC Voltage: 48 VDC
    • Maximum Charging Current: 120 A
    • Dimension (D x W x H): 8.4" x 24.4" x 19.7"
    • Net Weight: 99 lb
    • Capacity: 5120Wh
    • Nominal Voltage: 51.2VDC
    • Full Charge Voltage(FC): 56V
    • Full Discharge Voltage(FD): 42V
    • Typical Capacity: 100 Ah
    • Max Continuous Discharging Current: 120A
    • Max Discharging Current: 192A at 1 min
    • Protection: BMS, Breaker
    • Float Charge Voltage: 52.5V
    • Charge Current: 20A (0.2C)
    • Maximum Charge current: 50A (0.5C)
    • Standard Charge method: 0.2C CC (Constant current) charge to FC, CV (Constant voltage FC) charge till charge current declines to <0.05C
    • Inner Resistance: =20m ohm

    All In One System Physical:

    • System Dimension (D X W X H): 19.7" x 26" x 49.2"
    • Net Weight: 287 lb

    Standard:

    • Compliance Safety: IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC PART 15B

  • MEGA 400 Watt Solar Panel

    The MEGA 400 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 400W with 24V, the MEGA 400 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.

    • No. of Panels: 10 x MEGA 400 Watt Solar Panels
    • Wattage Per Panel: 400W
    • Total Wattage of Panels: 4000W

    Features:

    • 10-busbar solar cell configuration
    • Mono PERC Technology
    • Lightweight anodized aluminum frame
    • High-transmission, AR (anti-reflective) Coated Tempered Glass
    • Plug-and-play junction box
    • Industry-standard quick-connect cables work in series or parallel
    • Certified to withstand challenging environmental conditions
    • Excellent low-light performance on cloudy days, mornings, and evenings

    Installation:

    • Easy installation and handling for various applications (high-end off-grid and mobile applications)
    • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
    • Compatible with on-grid and off-grid inverters
