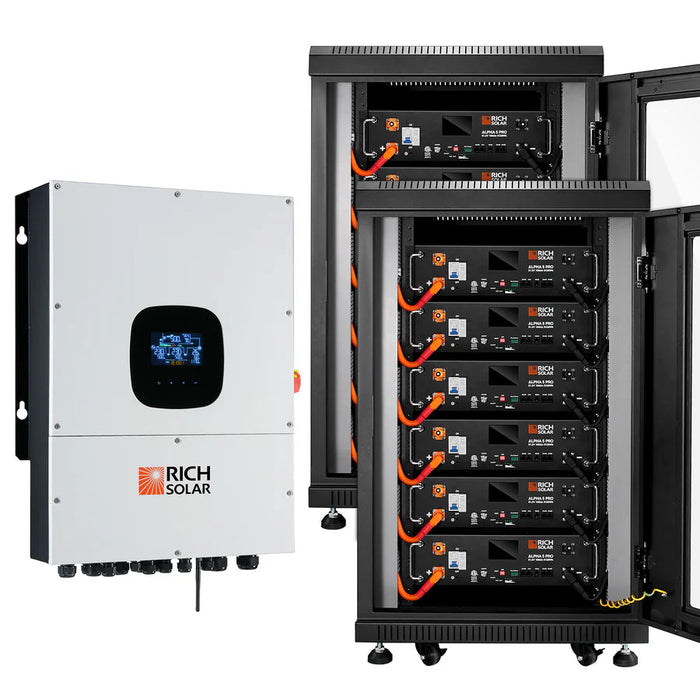

Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002] Rich Solar

Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]

$25,999.00 - $25,999.00
$25,999.00
$25,999.00 - $25,999.00
$25,999.00
Availability:
in stock, ready to be shipped

Kit Includes:

  • 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input | 10000W Output | 48V 120/240V Split Phase (RS-H12K)
  • 12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)

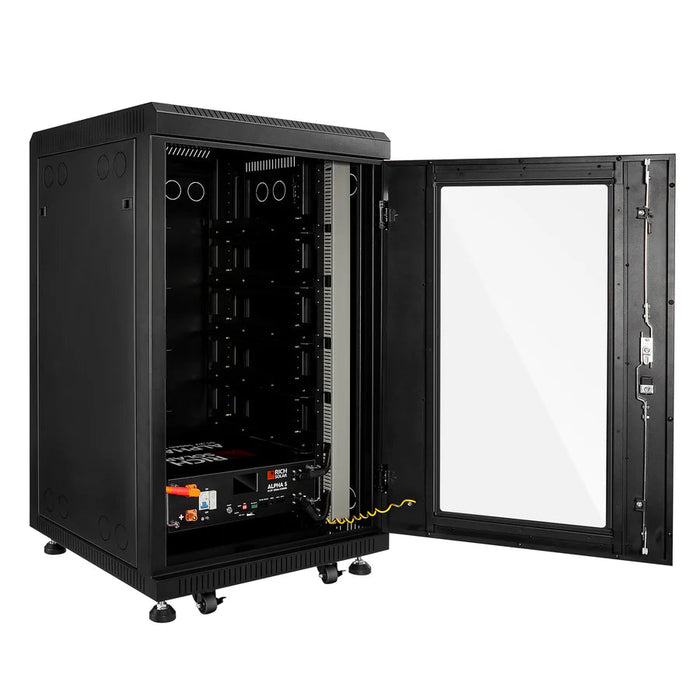

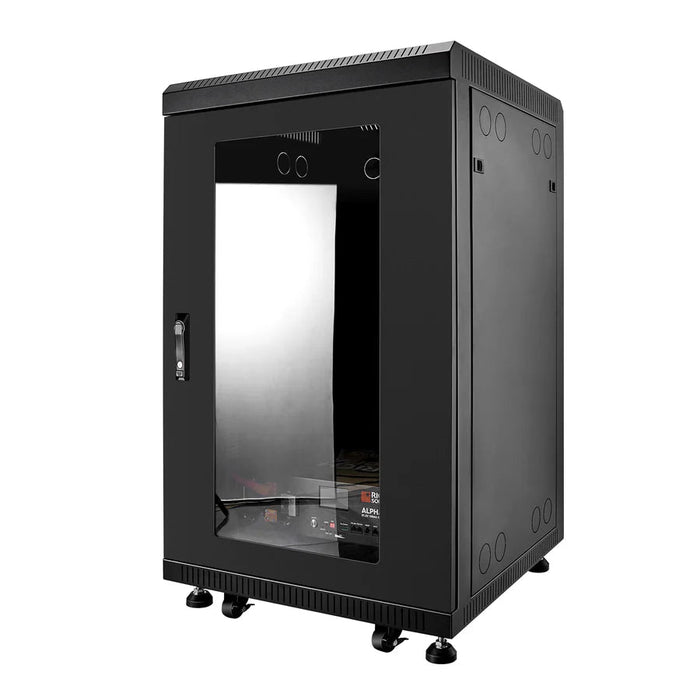

  • 2 x Free Battery Rack

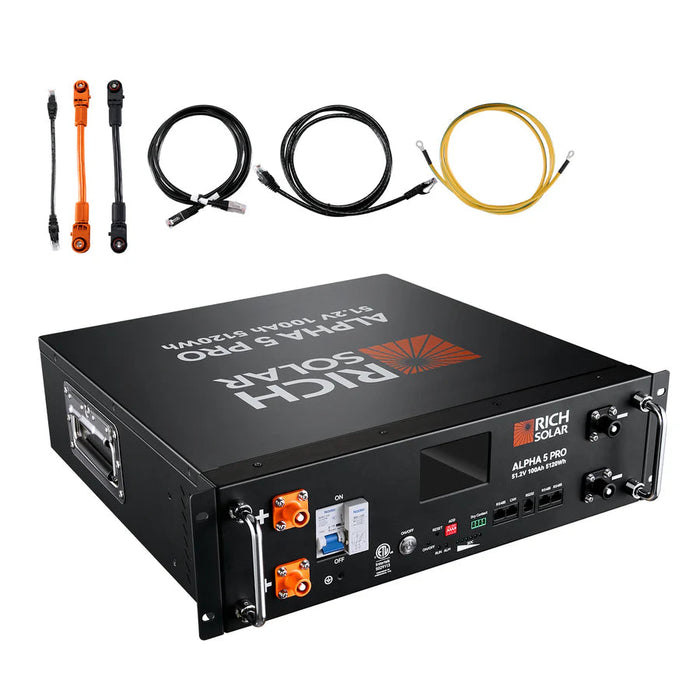

  • ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery

    Features:

    • Certification: UL1973, UL9540A, FCC
    • 7,000 Deep Cycles Life
    • 5120 Watt Hours Energy
    • 100A Continuous Charge Current
    • Compatible with multiple brands of inverters
    • Low maintenance
    • Over charging or discharging protection
    • Overcurrent & short circuit protection
    • Parallel up to 15 Batteries
    • Connect in Parallel for Larger Capacity
    • With Sophisticated Battery Management System (BMS)
    • 10 Years Lifespan

    Warranty:

    • *10-Year Warranty

    Specifications:

    Electrical Specifications

    • Nominal Voltage: 51.2V
    • Nominal Capacity: 100Ah
    • Minimum Capacity: 99.5Ah
    • Nominal Capacity: 5120Wh

    Operating Specifications

    • Charging Voltage: 56V
    • Discharging Cutoff Voltage: 44.8V
    • Maximum Charging Current: 100A
    • Continuous Charge Current: 100A
    • Maximum Discharge Current: 100A

    Physical Specifications

    • Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
    • Battery Weight: 99.2 lb
    • Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
    • Server Rack Weight: 196.2 lb

    BMS Operation

    • Operation Voltage: 43.2~58.4V
    • Maximum Charging Current: 100A
    • Maximum Discharging Current: 100A
    • Maximum Charge Voltage (CC/CV): 57.6V
    • Overcharge Protection Voltage (Battery): 58.4V
    • Overcharge Protection Release Voltage (Battery): 54V
    • Over Discharge Protection Voltage (Battery): 43.2V
    • Over Discharge Protection Release Voltage (Battery): 47.2V
    • Over Discharge Primary Charge Overcurrent Protection Value: 110A
    • First Stage Charge Over Current Delay: 1s
    • Primary Discharge Overcurrent Protection Value: 110A
    • Primary Discharge Overcurrent Protection Delay: 1s
    • Secondary Discharge Overcurrent Protection Value: 150A
    • Secondary Discharge Overcurrent Protection Delay: 500ms

    Temperature Performance

    • Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
    • Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
    • Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
    • Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

    Others

    • Certification: UL1973, UL9540A, FCC
    • Max. Expansion: 15 pcs in parallel
    • Communication Ports: RS485/RS232/CAN
    • Warranty: 10 Years Manufacturer Defect
  • nova12k12000watt48vsplitphasehybridinverter20240926_1__PID:32502380-6a43-49c9-a0cc-7ec28fab2097

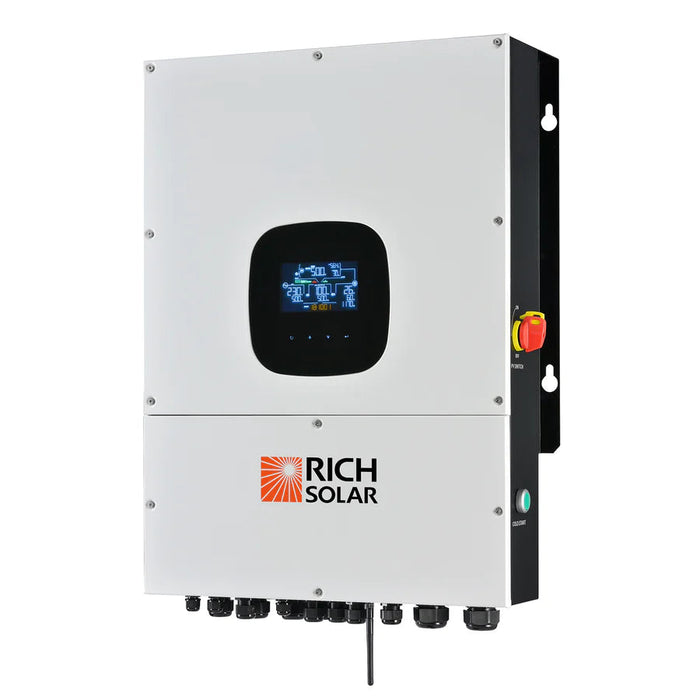

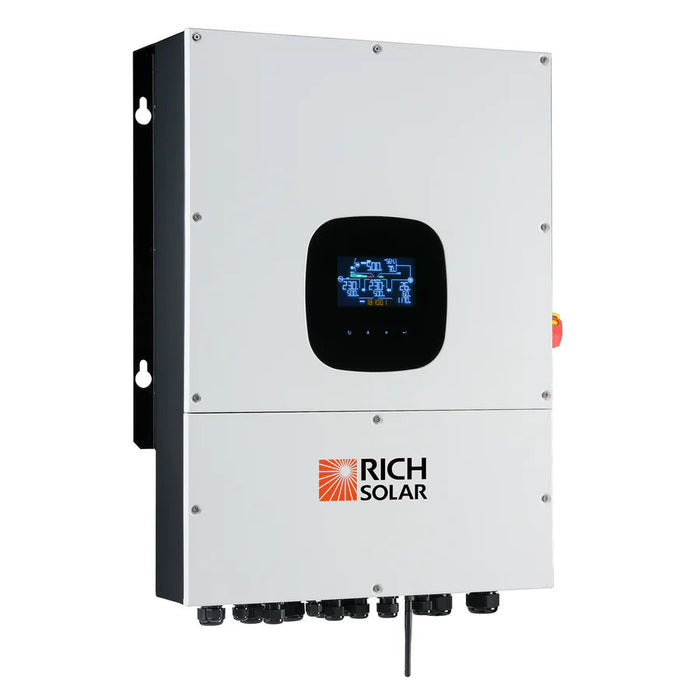

    NOVA 12K PV Hybrid Inverter 12000W PV Input

    Features:

    • Support multiple input & output - Split phase 120/240VAC Split phase, 120V/208V Split phase
    • Door-type cable compartment.
    • Built-in 300A DC breaker and 60A AC breaker.
    • Built-in AC coupled function.
    • Built-in Wi-Fi for mobile monitoring (APP is available).
    • Accepts second input power source, generator input compatible.
    • Built-in arc fault detection (AFD) and rapid shutdown (RSD).
    • External CT sensor to guarantee 100% self-consumption.
    • Built-in communication port for BMS (RS485).
    • User-adjustable charging current and voltage.
    • Parallel operation up to 6 units.
    • Idle Consumption: -150W (±10%)

    Specifications:

    Input

    • Maximum PV Input Power:12000W
    • Maximum DC Voltage:600VDC
    • Start-up Voltage/Initial Feeding Voltage:125VDC/160VDC
    • MPPT Voltage Range:120VDC-550VDC
    • Number of MPPT Trackers/Maximum Input Current:2/18A

    Input

    • Rated Output Power:10000VA/10000W
    • Nominal Output Voltage:120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
    • Output Voltage Range:105.5–132VAC per phase
    • Nominal Output Current:41.5A per phase

    • Battery

    • Battery DC Voltage Range:40–62VDC/48VDC
    • Maximum Solar Charging Current:200A
    • Maximum AC Charging Current:200A
    • Maximum Charging Current:200A

    Operating Environment

    • Operating Temperature Range:-13°F to 140°F(>113°F derating)
    • Protection Degree:IP65
    • Communication Port:RS232, RS485, Wi-Fi, USB

    Physical

    • Dimension (LxWxH):8.5x20.3x28.1in/215.5x515x715mm
    • Net Weight:99.2lb/45kg

    Certificate

    • Certificate:UL1741SA, UL1741SB, CSA 22.2.107.1, CEC
